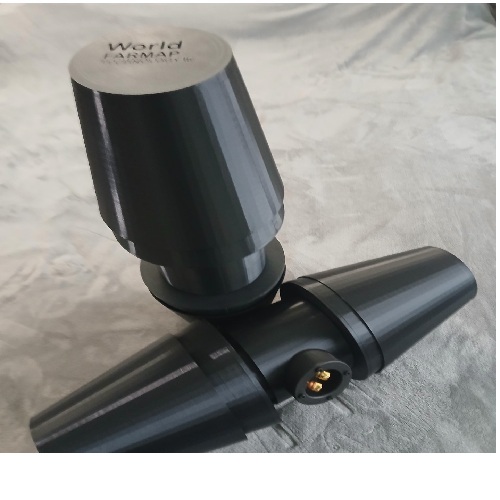

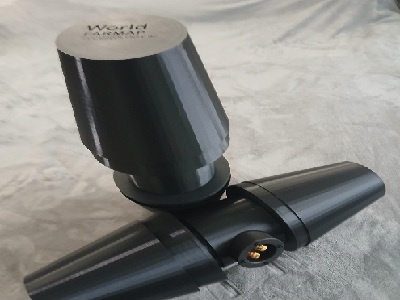

4”.3mf file, aka “Thumper”

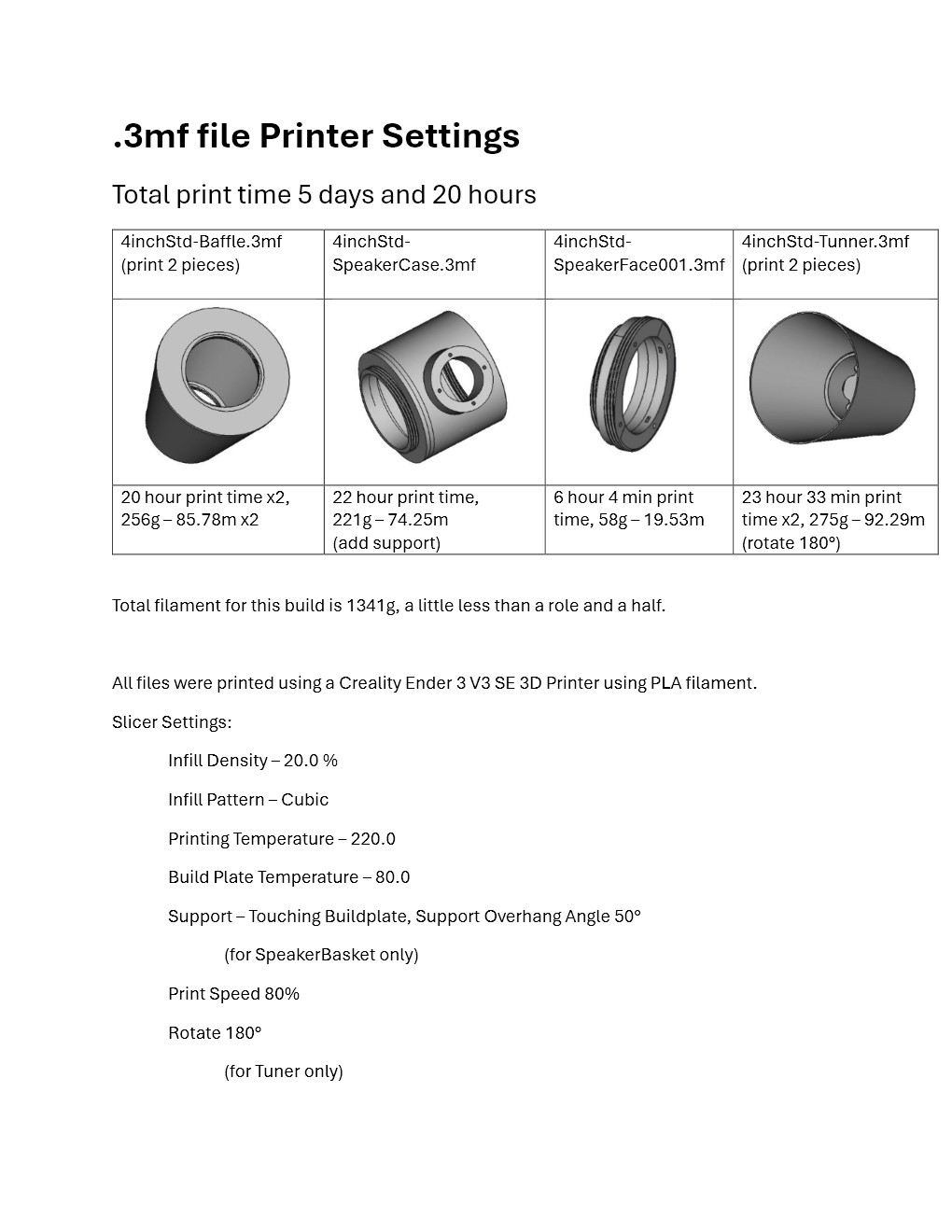

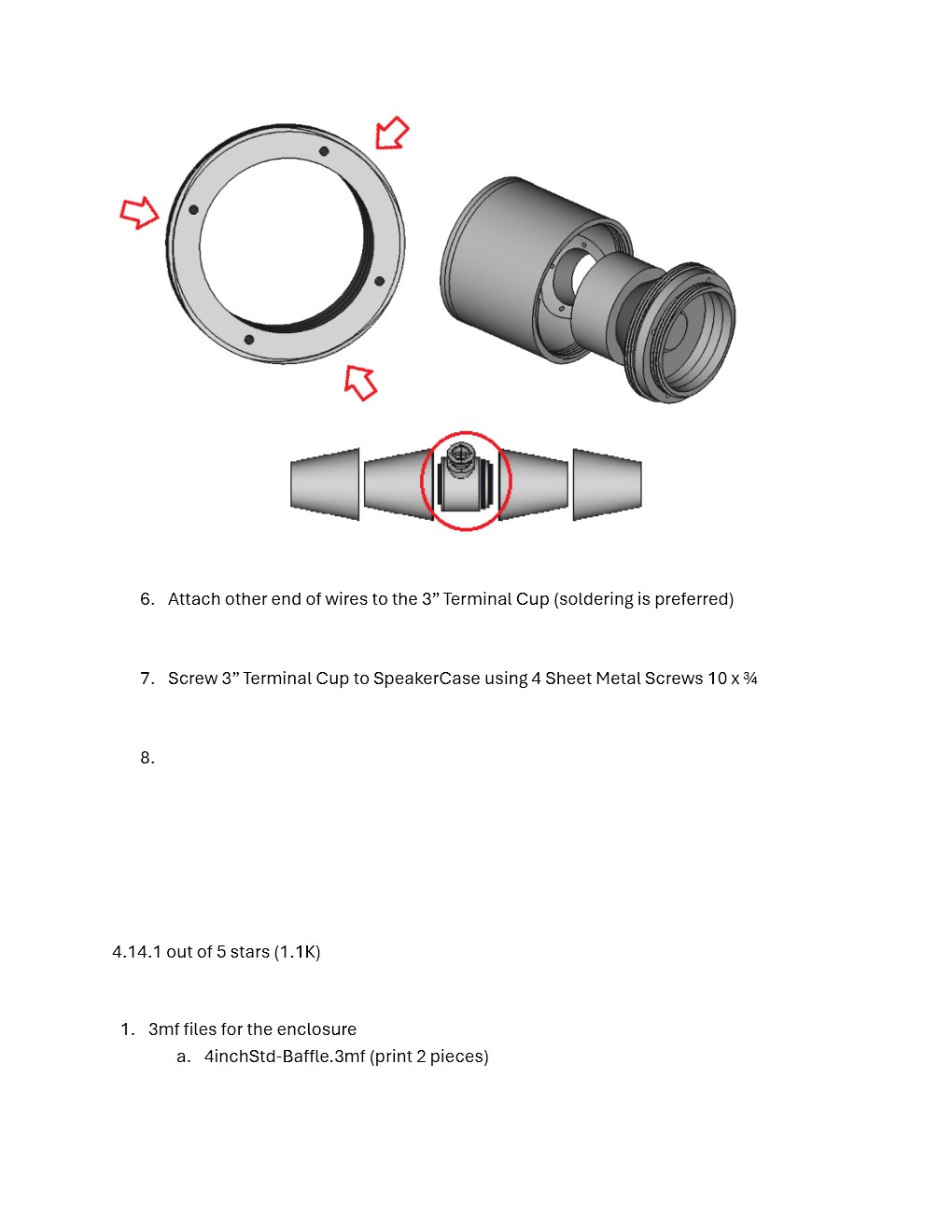

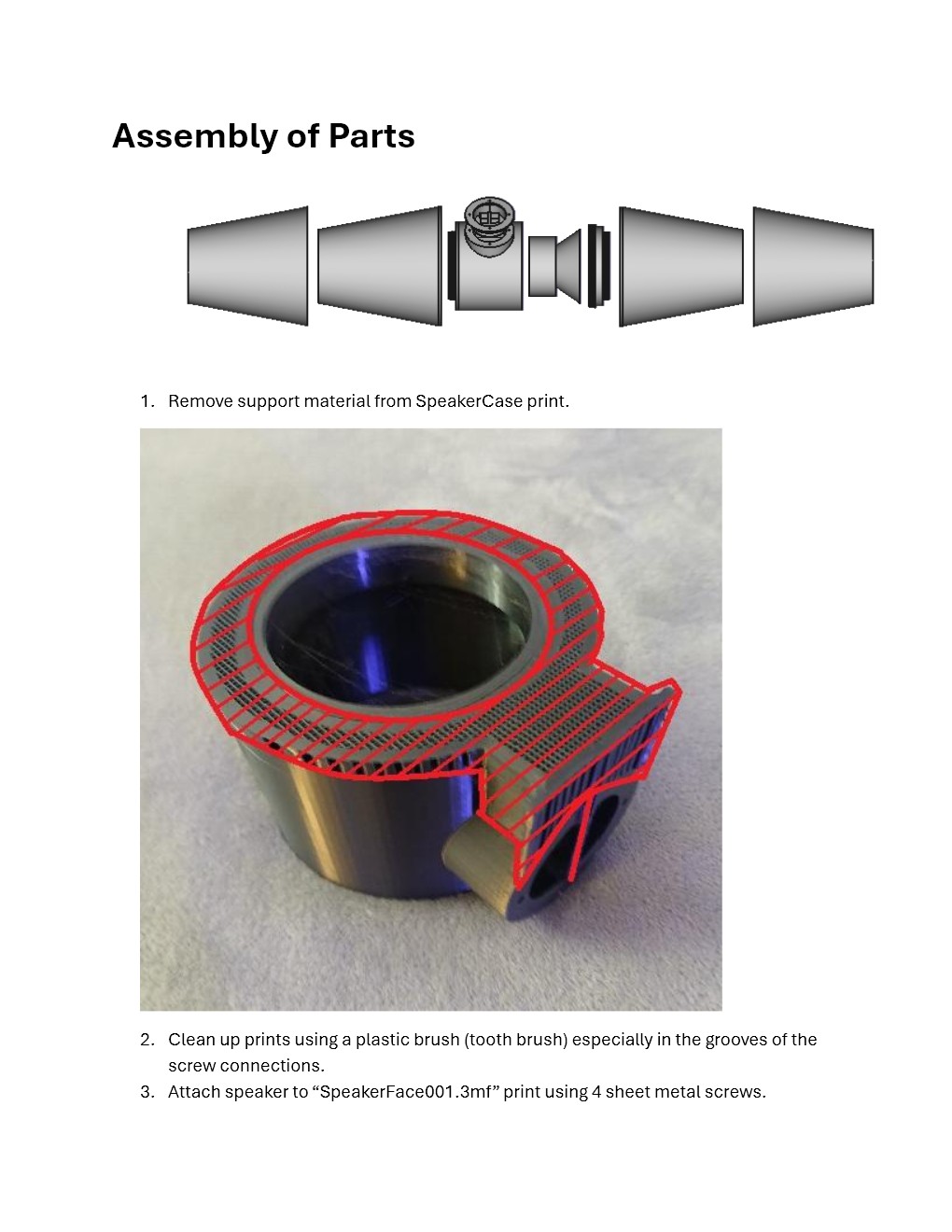

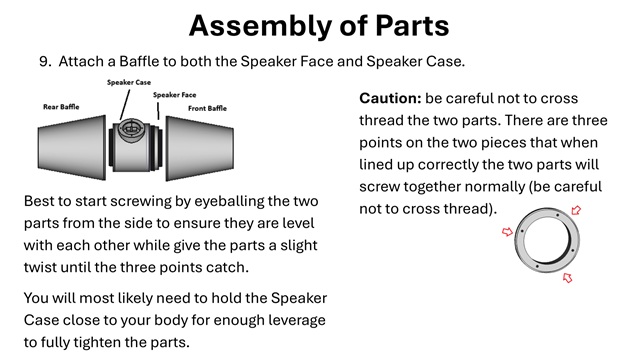

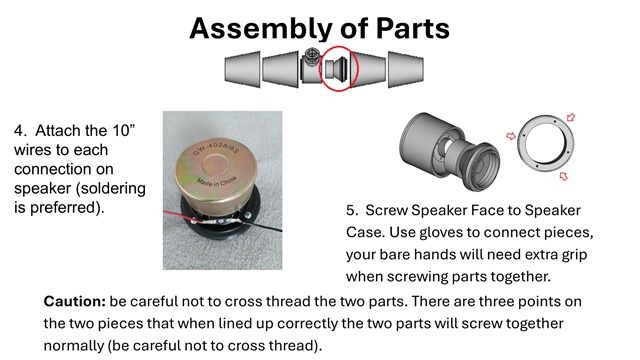

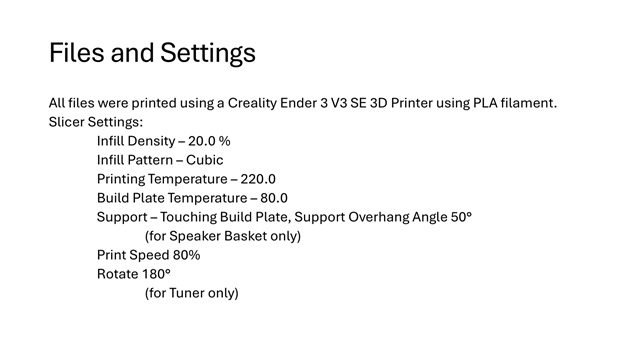

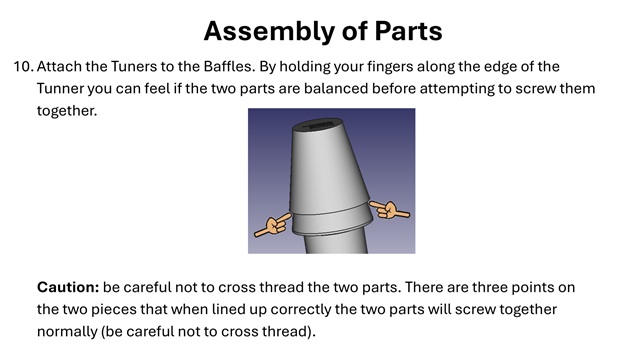

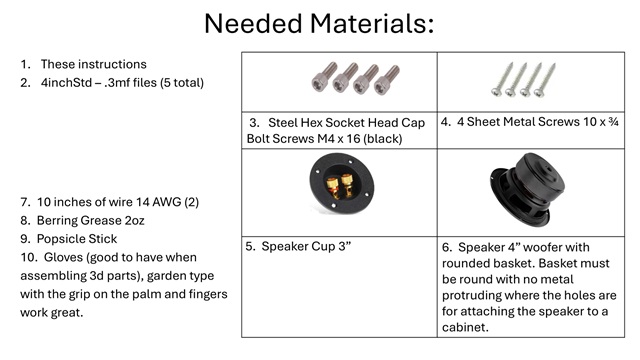

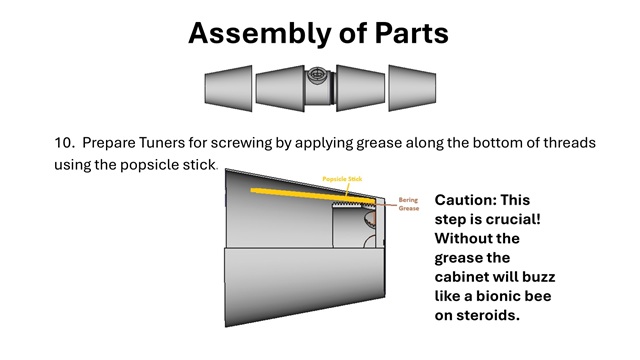

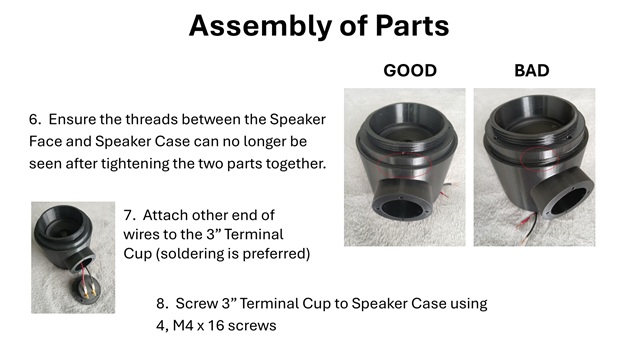

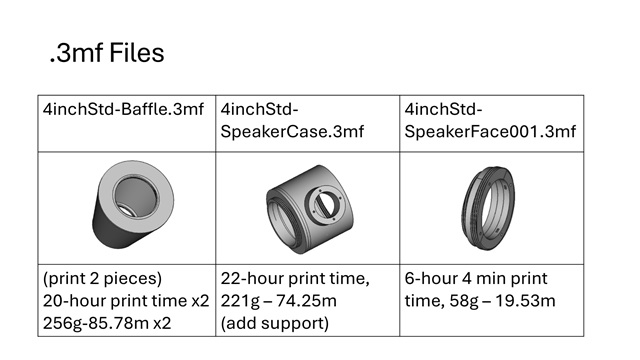

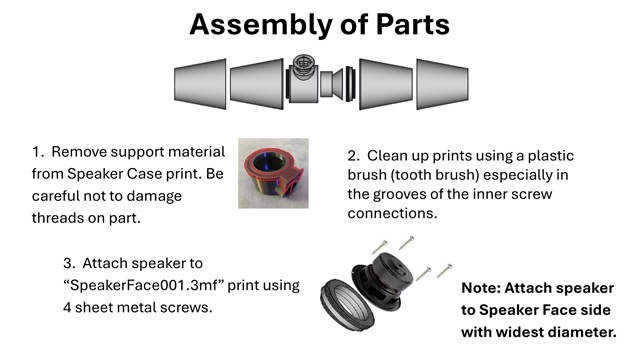

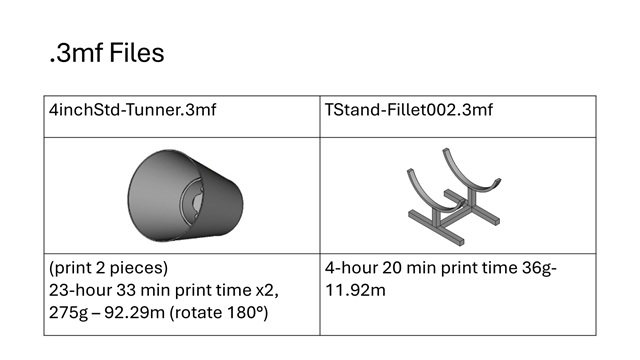

The “4”.3mf files are design to accommodate standard four-inch low frequency drivers with a circular basket. We chose model number: GW-402B/S, SHEILDED 4” 8 ohm Woofer. Required Parts: 3d printer with a 200mm X 200mm bed size 2kozillion meters of filament GW-402B/S, SHEILDED 4” 8 ohm Woofer 8 Screws 3” Speaker Box Cup Detailed assembly instructions (included with download and found on this page) Once printing of parts is complete, attach the woofer, screw the printed parts together, connect the speaker box cup to the speaker then attach to cabinet is basically the full assembly process, ensure to follow detailed assembly instructions. All files are printed in correct orientation with one file needing support 50 degree from the plate and another file must be rotated 180 degree.
*****************************
